LINLED 274X24MM DAISY-7X1 ZT25 4C LED MODULES

Up to 195lm/W - DAISY-7X1 ZT25 SELV modules

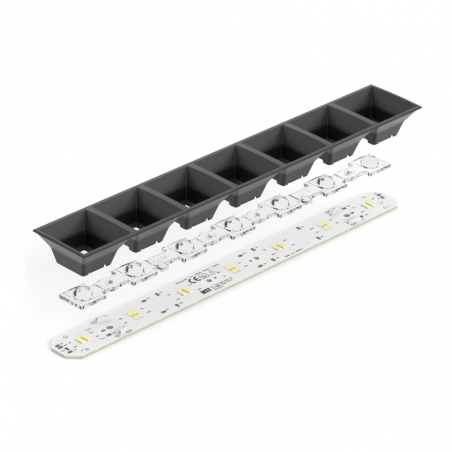

MST built-in constant-current linear LED modules for premium indoor lighting, optimized for LEDiL DAISY-7X1 and DAISY-28X1 optics and compatible with BRIANNA optics.
This 28mm-wide 4C SELV family is distinct from the 24mm-wide DAISY 4C family. Formats: 280x28mm, 560x28mm and 1120x28mm, nominal 1100lm, 2200lm and 4400lm, all designated 42V.
CRI 80 CJ G4 at 3000K and 4000K in all three lengths; CRI 90 EH1.1 G3 at 2700K, 3000K and 4000K in 280mm length.
CJ G4 280mm at 4000K: 150mA, 38V forward voltage, 5.7W and 1114lm, up to 196lm/W. The 1120mm version delivers 4458lm at 600mA and 23W.
EH1.1 G3 280mm at 4000K: 175mA, 41V, 7.2W and 1135lm, up to 158lm/W.
Parallel limits: 6 modules of 280mm, 3 of 560mm or 1 of 1120mm. Use compatible V-code groups for parallel wiring.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
No standalone IP rating; suitable protection must be provided by the luminaire.
CJ G4 3000K: 280 / 560 / 1120mm ordering codes: 1010 137 33446; 1010 137 33646; 1010 137 33846.
CJ G4 4000K: 280 / 560 / 1120mm ordering codes: 1010 137 33546; 1010 137 33746; 1010 137 33946.
EH1.1 G3 280mm: 2700K / 3000K / 4000K ordering codes: 1010 117 89346; 1010 117 89446; 1010 117 81546.
