In Track DMX RDM RGBW

30W 4 Channels

30W DMX/RDM RGBW dimmable in-track constant current LED driver with built-in 3-phase 6-wire track adaptor.
Designed for RGBW luminaires with smooth flicker-free dimming and 100% output when no dimming signal is present.
Maximum output current: W 280mA and RGB 140mA; output voltage 20–40Vdc, maximum <50Vdc.
Maximum output power 30W; dimming type RGBW; output channel configuration 1 CH / 2 CH.
Nominal input voltage 220–240Vac, 50/60Hz; nominal line current 0.22A max.
Power factor corrected: PF > 0.9 at full load @ 230V; no-load power loss <0.5W.
Compatible with brand tracks according to datasheet guidance; casing colors available in black, white or grey.

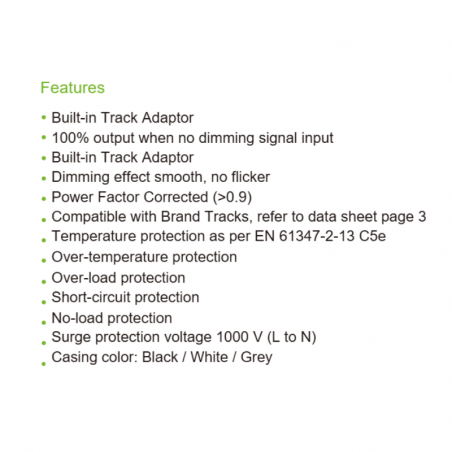

Protections: over-temperature, overload, short-circuit and no-load protection; automatic reversible protection functions.
Temperature protection according to EN 61347-2-13 C5e; ambient temperature ta -20°C to +45°C; max case temperature tc 75°C.
Surge protection: 1000V L-N; galvanic isolation 3.75kVrms, SELV-equivalent primary/secondary isolation.
Safety standards: IEC 61347-1:2015, IEC 61347-1:2015/AMD1:2017, IEC 61347-2-13:2014 and IEC 61347-2-13:2014/AMD1:2016.
EMC: EN IEC 55015:2019/A11:2020, EN 61547:2009, EN IEC 61000-3-2:2019/A1:2021 and EN 61000-3-3:2013/A2:2021.
Nominal lifetime up to 50,000 hours or 5-year guarantee under normal conditions.

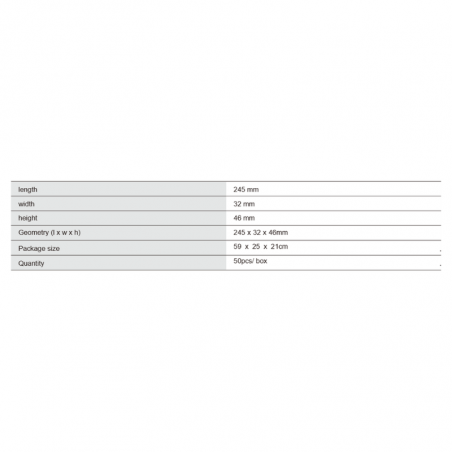

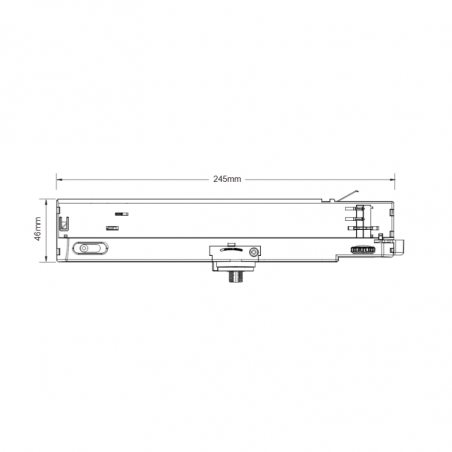

Dimensions: 245 × 32 × 46 mm; package size 59 × 25 × 21 cm; 50 pcs/box.

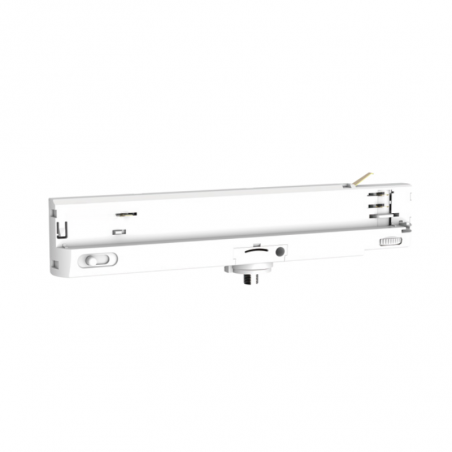

Model: ITDMX30WRGBW — 30W DMX/RDM RGBW in-track constant current LED driver.
6-wire DMX/RDM track adapter with L/N and RDM/D+, RDM/D-, RDM/G signal connections.
Wiring: input and output cable cross-section 0.5–2.5mm² solid or flexible; wire preparation length 7–8 mm.
Installation notes: keep all connections as short as possible for good EMI behaviour; max output wire length 20 cm; secondary switching is not permitted.
Incorrect wiring can damage the LED driver; do not exceed the stated maximum ambient temperature.
