LINLED 550LM PER 1FT 4C LED MODULES

Up to 185lm/W - SELV 4C linear modules

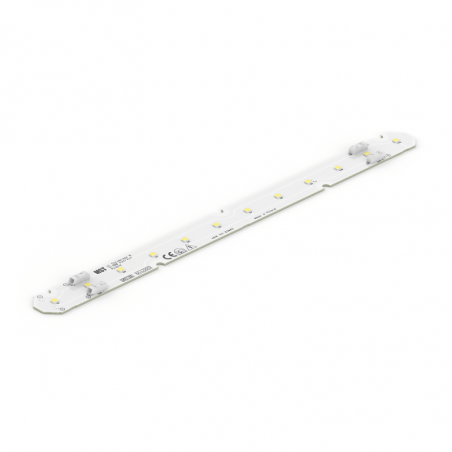

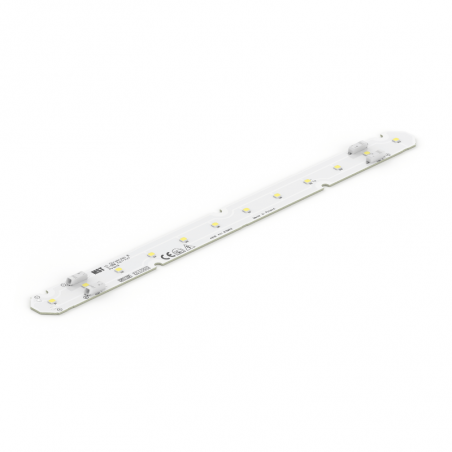

MST built-in constant-current linear LED modules, four-connector 4C system for SELV parallel wiring.

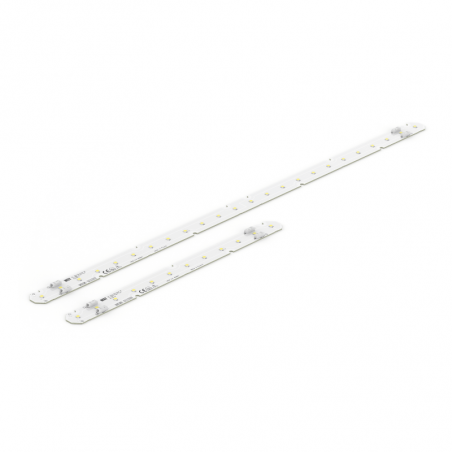

280x20mm nominal 550lm/36V and 560x20mm nominal 1100lm/36V, CRI 80 CN G3 at 3000K or 4000K.
280mm at 4000K: 95mA, 33V forward voltage, 3.1W and 580lm, up to 185lm/W. The 3000K version delivers 550lm at 175lm/W.
560mm at 4000K: 190mA, 33V, 6.3W and 1161lm; 3000K delivers 1100lm. Current ranges: 10-200mA for 280mm and 20-400mA for 560mm.
The connection table limits parallel wiring to 6 modules of 280mm or 3 of 560mm. A separate note states a 2240mm mixed-length limit; these statements are not equivalent, so confirm mixed-length configurations with MST rather than exceeding the tabulated limits.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
No standalone IP rating; suitable protection must be provided by the luminaire.

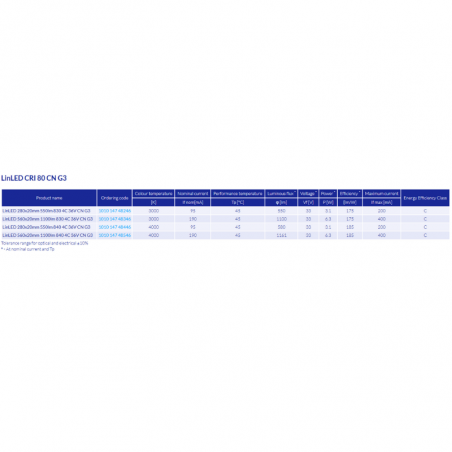

CN G3 3000K: 280 / 560mm ordering codes: 1010 147 48246; 1010 147 48346.
CN G3 4000K: 280 / 560mm ordering codes: 1010 147 48446; 1010 147 48546.
