RECLED 510X255MM LED MODULES

Up to 203lm/W - rectangular 2500lm modules

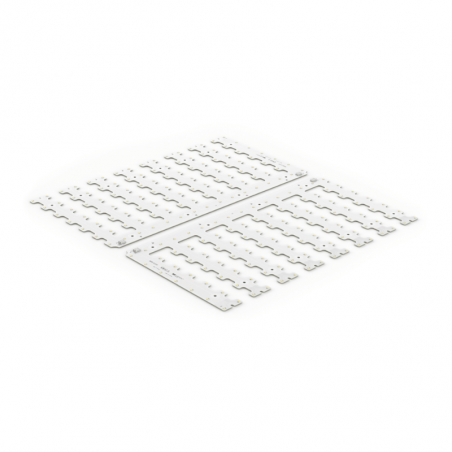

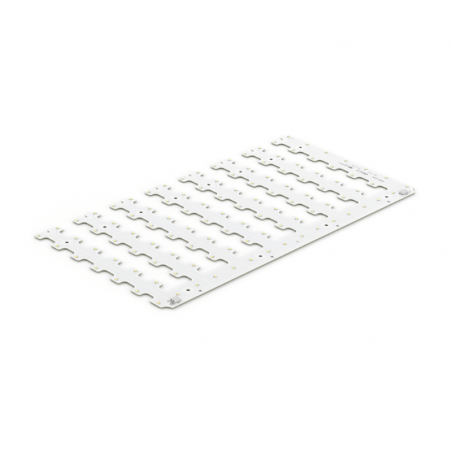

MST built-in constant-current rectangular LED modules, 510x255mm, with 2500lm / 42V nominal product designation.
CRI 80 versions: CJ G4 and CN G3, available at 3000K and 4000K; other CCT and CRI on request.
CJ G4: 340mA, 37V forward voltage, 13W, 2462lm at 3000K or 2561lm at 4000K; efficacy up to 203lm/W. Current range 80-2000mA.

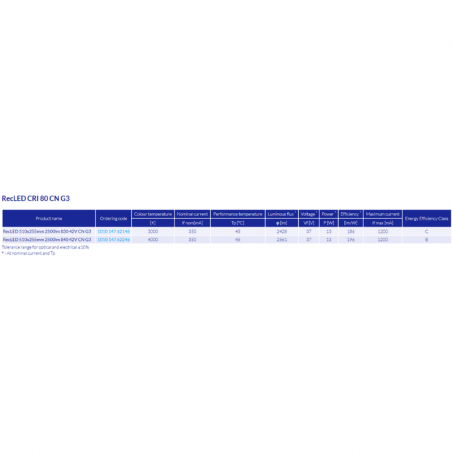

CN G3: 350mA, 37V forward voltage, 13W, 2428lm at 3000K or 2561lm at 4000K; efficacy up to 196lm/W. Current range 80-1200mA.
Series or parallel wiring; use the same V-code group for modules connected in parallel to prevent uneven luminous intensity.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
Built-in LED modules require suitable luminaire protection; no standalone IP rating.
CJ G4, 3000K / 4000K ordering codes: 1010 147 62346; 1010 147 62446.
CN G3, 3000K / 4000K ordering codes: 1010 147 62146; 1010 147 62246.
