DALI/TOUCH DIM TO PHASE CUT

400W max load converter with strain relief

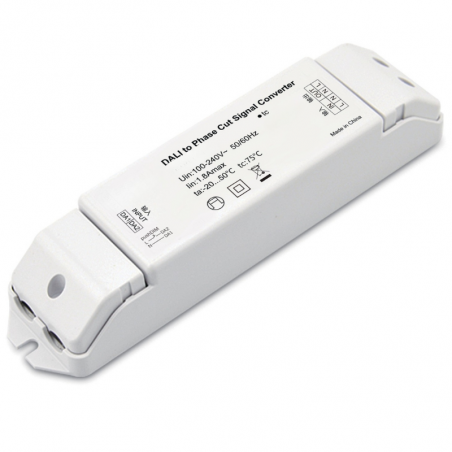

LIGHT & SMART DALI to Phase Cut thyristor dimming controller for converting DALI or Touch DIM control into phase-cut dimming.
Controls compatible phase-dimmable LED power supplies, incandescent lamps and AC low-voltage lamps.
100-240V AC input at 50/60Hz.
One DALI address and one output channel, with a maximum output current of 1.8A and a stated maximum output power of 396W.
Accepts a DALI control signal or a touch-switch signal; maximum DALI bus consumption is 2mA.
Complies with IEC 62386-101:2014, IEC 62386-102:2014 and IEC 62386-207 Ed2.

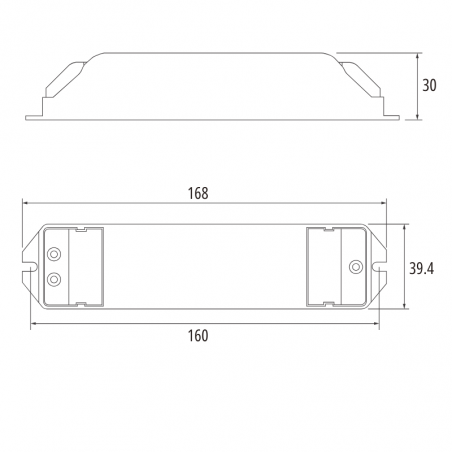

Housing dimensions of 168 x 39.4 x 30mm and gross weight of 84g.
Operating temperature range from -20°C to +50°C and stated lifetime of 30,000 hours.

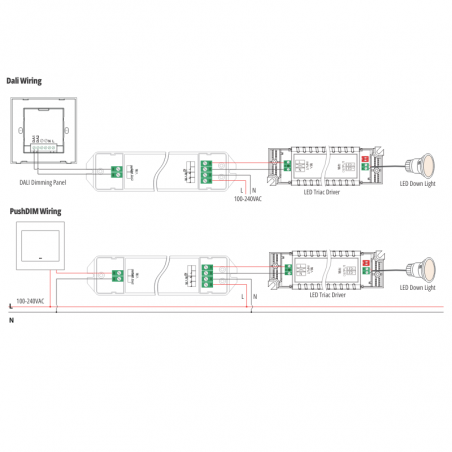

Supports DALI panel wiring or PushDIM wiring with a compatible LED TRIAC driver.
Disconnect power before installation and do not expose the device to heavy moisture.
